Description
SPECIFICATION:
-
Max. flow: 12 L/h @ 0 head
-
Max. rec. head: 10m
-
Max. suction lift: 2m
-
Sound level: 21dB(A) @ 1m
-
Power supply: 230 VAC, 0.11A, 16W, 50/60Hz
-
Rated: Non continuous
-
Class: II Appliance
-
Max. unit output: 16kW / 54,000Btu/h
-
Max. water temp: 40ºC / 104ºF
-
Discharge tube: 6mm ID
-
IP Protection: IP21
-
Safety switch: 3.0A Normally closed
-
Thermal protection: ✓
-
Fully potted: ✓
-
Self priming: ✓
-
Part number: FP2212

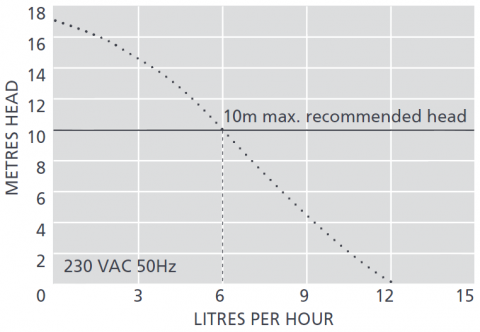

FLOW DIAGRAM:
IN THE BOX:
- Mini Orange pump
- 1.5m Plug & play power cable
- Reservoir
- Reservoir lid with 1.5m sensor cable
- Submersible reservoir
- Anti siphon device
- Float & filter
- 1.5m Suction tube 6mm ID
- 220mm Orange inlet hose 14mm ID
- 150mm Vinyl breather tube 6mm ID
- Drain connector kit
- Fixing kit
- Install manual
